RF•STOP™ SE Signal uses passive skin effect filtering technology for bi-directional low pass filtering of signals (positive and negative/ground wires). It allows full bandwidth analog (line/speaker) or SPDIF digital audio to pass while blocking higher frequencies. Attenuation performance is superior to traditional filter topologies.
-
RF•STOP™ SE Signal is reflectionless: absorbing and terminating signals internally (traditional filters are reflective, which causes intermodulation and other interferences)
-
RF•STOP™ SE Signal has effectively zero resistance: no pass-band signal attenuation and no additional signal impedance (traditional filters have a non-zero impedance)
- RF•STOP™ SE Signal is bi-directional: RF noise is dissipated equally from input-to-output (isolating downstream components) or output-to-input (isolating upstream components)
Install RF•STOP SE Signal using ultra short and well shielded interconnects.
Filter Performance:
| STANDARD |
1X (Single) filter performance. Shared ground.
|
| EXTREME |
4X (Quadruple) filter performance. Shared ground. |

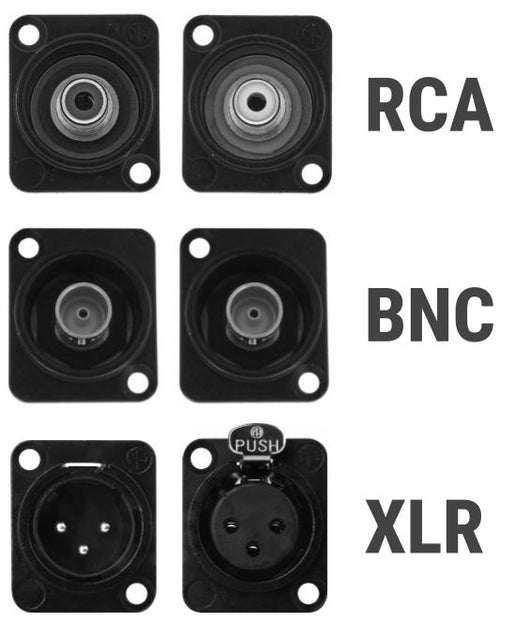

Connectors:
| RCA Input → RCA Output |
Install between DAC analog output and amp/pre to filter downstream RF/EM noise from entering 'back' into DAC |
| BNC Input → BNC Output |
Install between SRC•DX/MScaler DBNC output and DAC to filter upstream RF/EM noise from entering DAC |
| XLR Input → XLR Output
|
Install between DAC analog output and amp/pre to filter downstream RF/EM noise from entering DAC |
